PI6CG33402C - 3.3V Very-Low Power 4-Output PCIe Clock Generator

Name: PI6CG33402C
SKU: PI6CG33402C-1427068

Diodes

The PI6CG33402C by Diodes is a 3.3V Very-Low Power 4-Output PCIe Clock Generator. Below is the official datasheet preview.

Datasheet Details

Part number	PI6CG33402C
Manufacturer	DIODES
File Size	1.29 MB
Description	3.3V Very-Low Power 4-Output PCIe Clock Generator
Datasheet	PI6CG33402C-Diodes.pdf

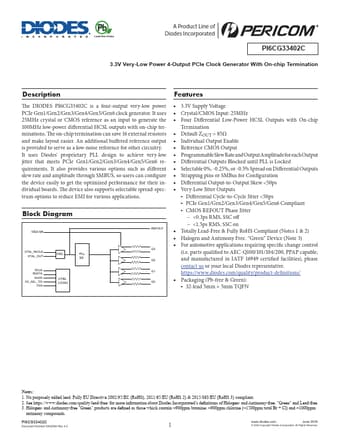

Additional preview pages of the PI6CG33402C datasheet.

The DIODES PI6CG33402C is a four-output very-low power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low-power differential HCSL outputs with on-chip terminations. The on-chip termination can save 16 external resistors and make layout easier. An additional buffered reference output is provided to serve as a low-noise reference for other circuitry. It uses Diodes' proprietary PLL design to achieve very-low jitter th.
