DXTP07100BFG - 100V PNP HIGH PERFORMANCE TRANSISTOR

Product Overview

Diodes

📥 Download Datasheet

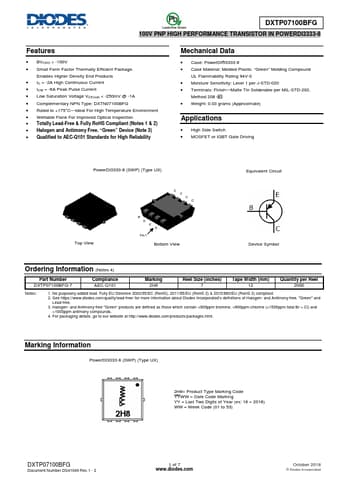

DXTP07100BFG 100V PNP HIGH PERFORMANCE TRANSISTOR by Diodes - Datasheet Preview — Datasheet preview – DXTP07100BFG

Datasheet Details

Part number	DXTP07100BFG
Manufacturer	DIODES
File Size	781.61 KB
Description	100V PNP HIGH PERFORMANCE TRANSISTOR
Datasheet	DXTP07100BFG Datasheet
Additional preview pages of the DXTP07100BFG datasheet.

Product details

Features

BVCEO > -100V.
Small Form Factor Thermally Efficient Package. Enables Higher Density End Products.
IC = -2A High Continuous Current.
ICM = -6A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < -250mV @ -1A.
Complementary NPN Type: DXTN07100BFG.
Rated to +175°C.
Ideal For High Temperature Environment.
Wettable Flank For Improved Optical Inspection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
