DXTP07060BFG - 60V PNP HIGH PERFORMANCE TRANSISTOR

Product Overview

Diodes

📥 Download Datasheet

DXTP07060BFG 60V PNP HIGH PERFORMANCE TRANSISTOR by Diodes - Datasheet Preview — Datasheet preview – DXTP07060BFG

Datasheet Details

Part number	DXTP07060BFG
Manufacturer	DIODES
File Size	809.02 KB
Description	60V PNP HIGH PERFORMANCE TRANSISTOR
Datasheet	DXTP07060BFG Datasheet

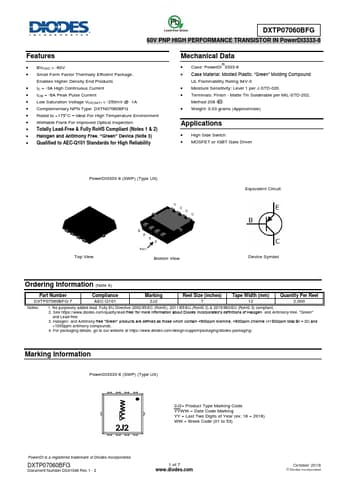

Additional preview pages of the DXTP07060BFG datasheet.

Product details

Features

BVCEO > -60V.
Small Form Factor Thermally Efficient Package. Enables Higher Density End Products.
IC = -3A High Continuous Current.
ICM = -6A Peak Pulse Current.
Low Saturation Voltage VCE(SAT) < -250mV @ -1A.
Complementary NPN Type: DXTN07060BFG.
Rated to +175°C.
Ideal For High Temperature Environment.
Wettable Flank For Improved Optical Inspection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Gre.
