DXT690BP5 - NPN HIGH GAIN TRANSISTOR

Product Overview

Diodes

📥 Download Datasheet

DXT690BP5 NPN HIGH GAIN TRANSISTOR by Diodes - Datasheet Preview — Datasheet preview – DXT690BP5

Datasheet Details

Part number	DXT690BP5
Manufacturer	DIODES
File Size	233.89 KB
Description	NPN HIGH GAIN TRANSISTOR
Datasheet	DXT690BP5 Datasheet

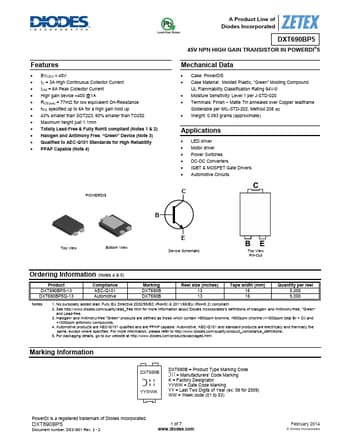

Additional preview pages of the DXT690BP5 datasheet.

Product details

Features

BVCEO > 45V.
IC = 3A High Continuous Collector Current.
ICM = 6A Peak Collector Current.
High gain device >400 @1A.
RCE(sat) = 77mΩ for low equivalent On-Resistance.
hFE specified up to 6A for a high gain hold up.
43% smaller than SOT223; 60% smaller than TO252.
Maximum height just 1.1mm.
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qu.
