DSS3540M - TRANSISTOR

Diodes

The DSS3540M by Diodes is a TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

DSS3540M TRANSISTOR by Diodes - Datasheet Preview — Official preview page of the DSS3540M TRANSISTOR datasheet (Diodes).

Datasheet Details

Part number	DSS3540M
Manufacturer	DIODES
File Size	367.10 KB
Description	TRANSISTOR
Datasheet	DSS3540M-Diodes.pdf

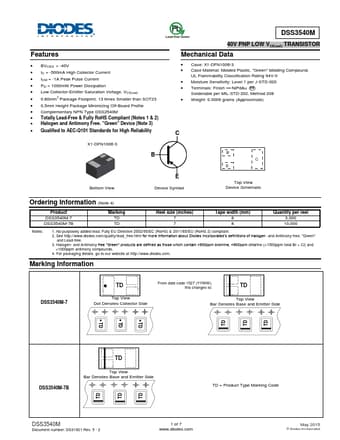

Additional preview pages of the DSS3540M datasheet.

DSS3540M Product details

Features

BVCEO > -40V.
IC = -500mA High Collector Current.
ICM = -1A Peak Pulse Current.
PD = 1000mW Power Dissipation.
Low Collector-Emitter Saturation Voltage, VCE(sat).
0.60mm2 Package Footprint, 13 times Smaller than SOT23.
0.5mm Height Package Minimizing Off-Board Profile.
Complementary NPN Type DSS2540M.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. "Green" Device (Note 3).
Qualified to AEC-Q101 Standards f.
