DSS3515M - 15V PNP TRANSISTOR

Diodes

The DSS3515M by Diodes is a 15V PNP TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

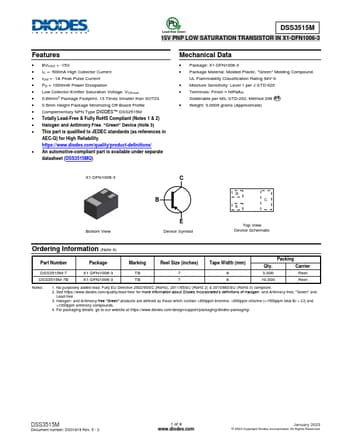

DSS3515M 15V PNP TRANSISTOR by Diodes - Datasheet Preview — Official preview page of the DSS3515M 15V PNP TRANSISTOR datasheet (Diodes).

Datasheet Details

Part number	DSS3515M
Manufacturer	DIODES
File Size	494.99 KB
Description	15V PNP TRANSISTOR
Datasheet	DSS3515M-Diodes.pdf
Additional preview pages of the DSS3515M datasheet.

DSS3515M Product details

Features

BVCEO > -15V.
IC = -500mA High Collector Current.
ICM = -1A Peak Pulse Current.
PD = 1000mW Power Dissipation.
Low Collector-Emitter Saturation Voltage, VCE(sat).
0.60mm2 Package Footprint, 13 Times Smaller than SOT23.
0.5mm Height Package Minimizing Off-Board Profile.
Complementary NPN Type DIODES™ DSS2515M.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
This part is qualified to.
