DMP1081UCB4 - P-Channel MOSFET

Product Overview

Diodes

Datasheet Details

Part number	DMP1081UCB4
Manufacturer	DIODES
File Size	354.77 KB
Description	P-Channel MOSFET
Datasheet	DMP1081UCB4 Datasheet

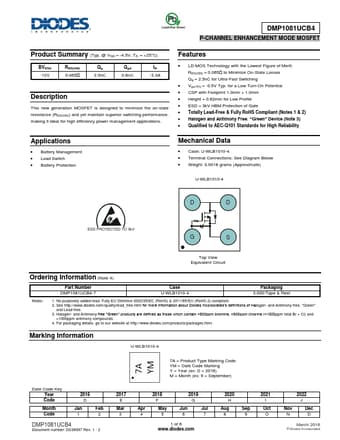

Additional preview pages of the DMP1081UCB4 datasheet.

Product details

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Features

LD-MOS Technology with the Lowest Figure of Merit: RDS(ON) = 0.065Ω to Minimize On-State Losses Qg = 2.5nC for Ultra-Fast Switching.
Vgs(TH) = -0.5V Typ. for a Low Turn-On Potential.
CSP with Footprint 1.0mm × 1.0mm.
Height = 0.62mm for Low Profile.
ESD = 3kV HBM Protection of Gate.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
