DMP1008UCA9 - P-CHANNEL MOSFET

DIODES

📥 Download Datasheet

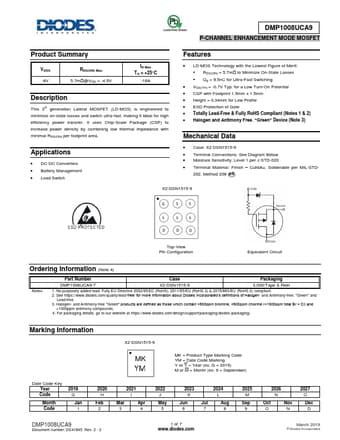

DMP1008UCA9 Datasheet Preview — Preview of DMP1008UCA9 PDF

Datasheet Details

Part number	DMP1008UCA9
Manufacturer	DIODES
File Size	442.93 KB
Description	P-CHANNEL MOSFET
Datasheet	DMP1008UCA9-DIODES.pdf

DMP1008UCA9 Product details

Description

This 3rd generation Lateral MOSFET (LD-MOS) is engineered to minimize on-state losses and switch ultra-fast, making it ideal for high efficiency power transfer. LD-MOS Technology with the Lowest Figure of Merit: RDS(ON) = 5.7mΩ to Minimize On-State Losses Qg = 9.5nC for Ultra-Fast Switching VGS(TH) = -0.7V Typ.

Features

VDSS -8V RDS(ON) Max 5.7mΩ@VGS = -4.5V ID Max TA = +25°C -16A.
