DMN62D0UW - N-CHANNEL MOSFET

Product Overview

Diodes

Datasheet Details

Part number	DMN62D0UW
Manufacturer	DIODES
File Size	619.17 KB
Description	N-CHANNEL MOSFET
Datasheet	DMN62D0UW Datasheet

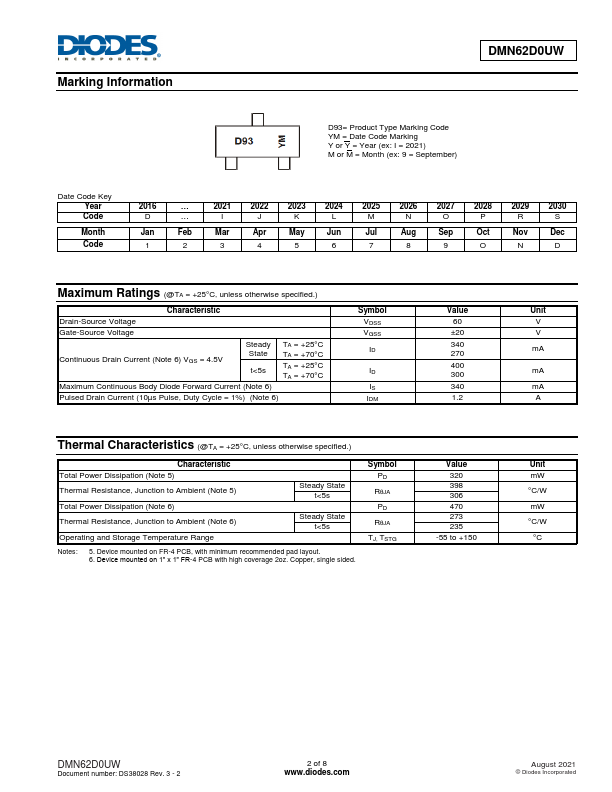

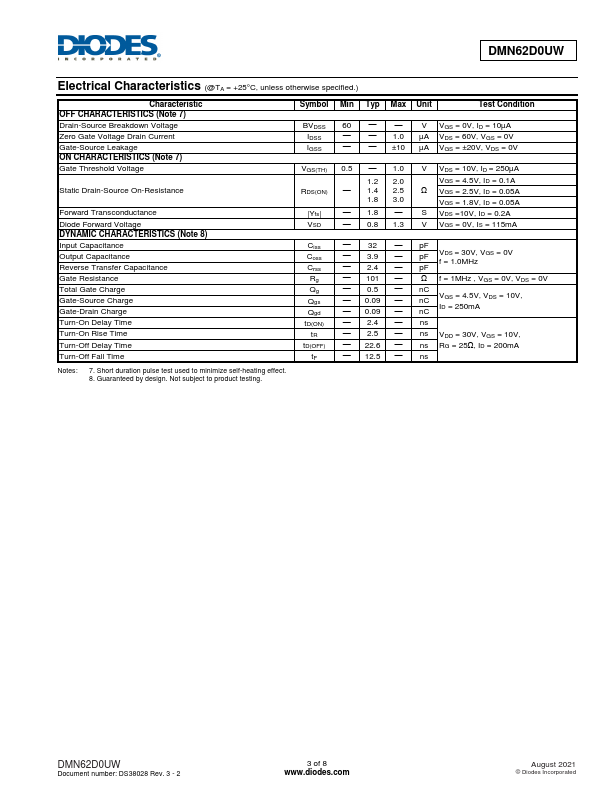

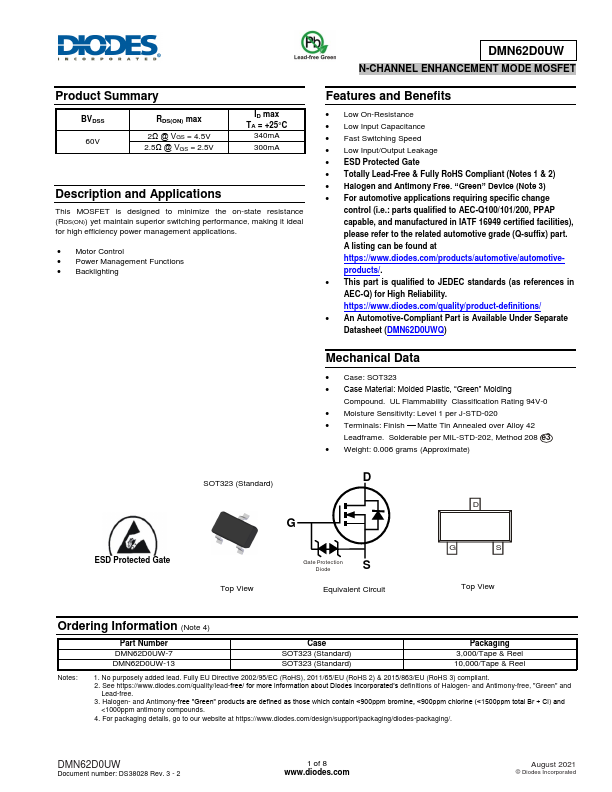

Additional preview pages of the DMN62D0UW datasheet.

Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications. Motor Control Power Management Functions Backlighting

Features

Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
ESD Protected Gate.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
