DMN2320UFB4 - N-Channel MOSFET

Name: DMN2320UFB4
SKU: DMN2320UFB4-983657

Diodes

📥 Download Datasheet

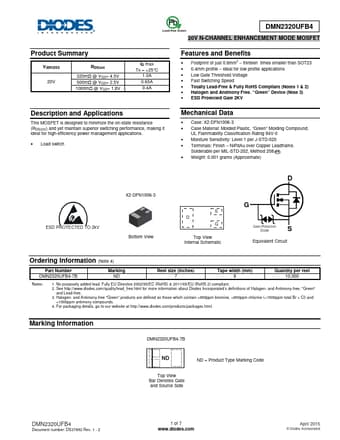

DMN2320UFB4 Datasheet Preview — Preview of DMN2320UFB4 PDF

Datasheet Details

Part number	DMN2320UFB4
Manufacturer	DIODES
File Size	184.75 KB
Description	N-Channel MOSFET
Datasheet	DMN2320UFB4-Diodes.pdf

DMN2320UFB4 Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Load switch DMN2320UFB4 20V N-CHANNEL ENHANCEMENT MODE MOSFET

Features

Footprint of just 0.6mm2.
thirteen times smaller than SOT23.
0.4mm profile.
ideal for low profile.
