DMN2300U - N-Channel MOSFET

📥 Download Datasheet

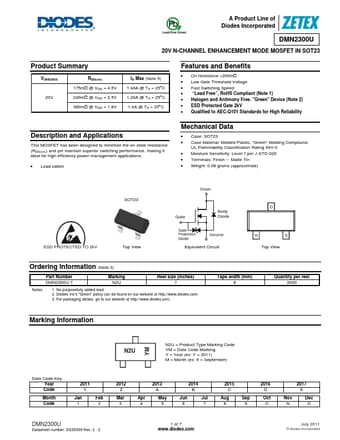

Preview of DMN2300U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DMN2300U
Manufacturer DIODES
File Size 143.18 KB
Description N-Channel MOSFET
Datasheet download datasheet DMN2300U-Diodes.pdf

DMN2300U Product details

Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Load switch Mechanical Data Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish Matte Tin Weight:

Features
