DGD21844 - HALF-BRIDGE GATE DRIVER

Product Overview

Diodes

📥 Download Datasheet

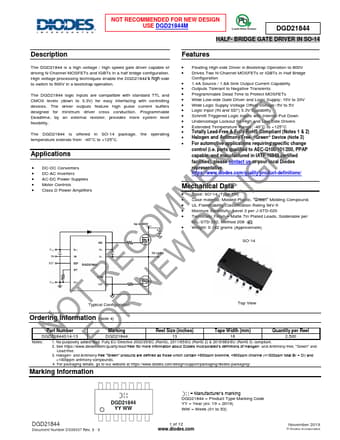

DGD21844 HALF-BRIDGE GATE DRIVER by Diodes - Datasheet Preview — Datasheet preview – DGD21844

Datasheet Details

Part number	DGD21844
Manufacturer	DIODES
File Size	841.64 KB
Description	HALF-BRIDGE GATE DRIVER
Datasheet	DGD21844 Datasheet
Additional preview pages of the DGD21844 datasheet.

Product details

Description

The DGD21844 is a high voltage / high speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration.

Features

Floating High-side Driver in Bootstrap Operation to 600V.
Drives Two N-Channel MOSFETs or IGBTs in Half Bridge Configuration.
1.4A Source / 1.8A Sink Output Current Capability.
Outputs Tolerant to Negative Transients.
Programmable Dead Time to Protect MOSFETs.
Wide Low-side Gate Driver and Logic Supply: 10V to 20V.
Wide Logic Supply Voltage Offset Voltage:-5V to 5V.
Logic Input (IN and SD.
) 3.3V Capability.
Schmitt Triggered Logic Inputs with Int.
