DGD2117 - SINGLE CHANNEL GATE DRIVER

Product Overview

Diodes

📥 Download Datasheet

DGD2117 SINGLE CHANNEL GATE DRIVER by Diodes - Datasheet Preview — Datasheet preview – DGD2117

Datasheet Details

Part number	DGD2117
Manufacturer	DIODES
File Size	644.56 KB
Description	SINGLE CHANNEL GATE DRIVER
Datasheet	DGD2117 Datasheet

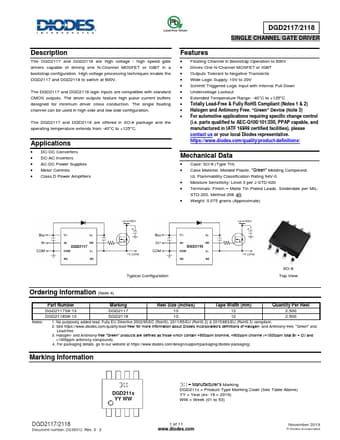

Additional preview pages of the DGD2117 datasheet.

Product details

Description

The DGD2117 and DGD2118 are high voltage / high speed gate drivers capable of driving one N-Channel MOSFET or IGBT in a bootstrap configuration.

Features

Floating Channel in Bootstrap Operation to 600V.
Drives One N-Channel MOSFET or IGBT.
Outputs Tolerant to Negative Transients.
Wide Logic Supply: 10V to 20V.
Schmitt Triggered Logic Input with Internal Pull Down.
Undervoltage Lockout.
Extended Temperature Range: -40°C to +125°C.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
