DESD1CAN2SOQ - CAN BUS ESD PROTECTION DIODE

Product Overview

Diodes

Datasheet Details

Part number	DESD1CAN2SOQ
Manufacturer	DIODES
File Size	264.66 KB
Description	CAN BUS ESD PROTECTION DIODE
Datasheet	DESD1CAN2SOQ Datasheet

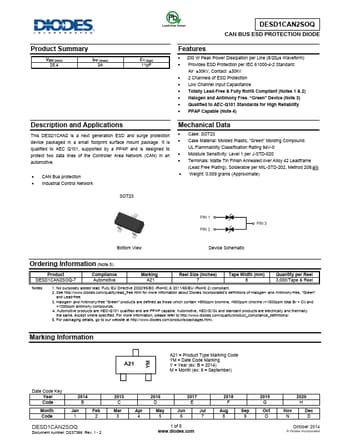

Additional preview pages of the DESD1CAN2SOQ datasheet.

Product details

Description

and Applications This DESD1CAN2 is a next generation ESD and surge protection device packaged in a small footprint surface mount package.It is qualified to AEC Q101, supported by a PPAP and is designed to protect two data lines of the Controller Area Network (CAN) in an automotive. CAN Bus protection Industrial Control Network Mechanical Data Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. Moisture S

Features

200 W Peak Power Dissipation per Line (8/20µs Waveform).
Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV.
2 Channels of ESD Protection.
Low Channel Input Capacitance.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4).
