DESD24VS5U6SOQ - FIVEFOLD ESD PROTECTION DIODE ARRAYS

Product Overview

DIODES

Datasheet Details

Part number	DESD24VS5U6SOQ
Manufacturer	DIODES
File Size	428.80 KB
Description	FIVEFOLD ESD PROTECTION DIODE ARRAYS
Datasheet	DESD24VS5U6SOQ Datasheet

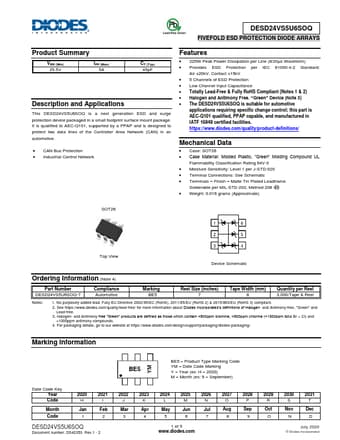

Additional preview pages of the DESD24VS5U6SOQ datasheet.

Product details

Description

and Applications This DESD24VS5U6SOQ is a next generation ESD and surge protection device packaged in a small footprint surface mount package.It is qualified to AEC-Q101, supported by a PPAP and is designed to protect two data lines of the Controller Area Network (CAN) in an automotive. CAN Bus Protection Industrial Control Network

Features

225W Peak Power Dissipation per Line (8/20µs Waveform).
Provides ESD Protection per IEC 61000-4-2 Standard: Air ±20kV, Contact ±15kV.
5 Channels of ESD Protection.
Low Channel Input Capacitance.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The DESD24VS5U6SOQ is suitable for automotive.
