DDZ12B - SURFACE MOUNT PRECISION ZENER DIODE

Product Overview

Diodes

Part number	DDZ12B
Manufacturer	DIODES
File Size	473.32 KB
Description	SURFACE MOUNT PRECISION ZENER DIODE
Datasheet	DDZ12B Datasheet
Note	This datasheet PDF includes multiple part numbers: DDZ12B, DDZ5V1B. Please refer to the document for exact specifications by model.

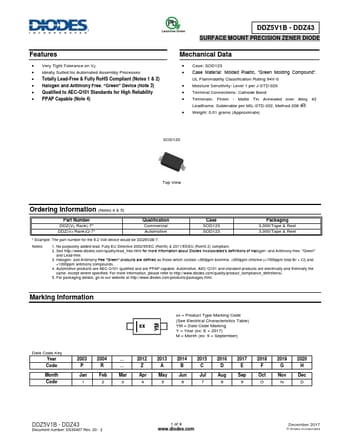

Additional preview pages of the DDZ12B datasheet.

Very Tight Tolerance on VZ.
Ideally Suited for Automated Assembly Processes.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Notes 3 & 4).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOD123.
Case Material: Molded Plastic, “Green Molding Compound”. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
