DDTC142JE - NPN PRE-BIASED 100mA SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTC142JE
Manufacturer	DIODES
File Size	372.58 KB
Description	NPN PRE-BIASED 100mA SURFACE MOUNT TRANSISTOR
Datasheet	DDTC142JE Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTC142JE, DDTC122LE. Please refer to the document for exact specifications by model.

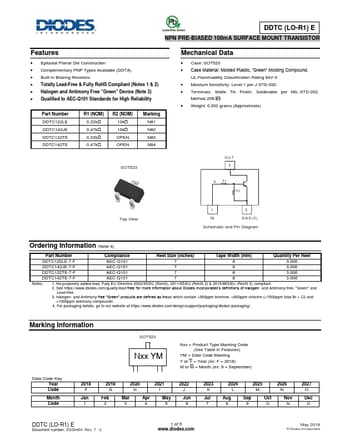

Additional preview pages of the DDTC142JE datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistors.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free "Green" Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Part Number DDTC122LE DDTC142JE DDTC122TE DDTC142TE R1 (NOM) 0.22kΩ 0.47kΩ 0.22kΩ 0.47kΩ R2 (NOM) 10k 10k OPEN OPEN Marking N81 N82 N83 N84 SOT523 Top View Mechanical Data.
Case: SOT523.
