DDTC123YKA - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTC123YKA
Manufacturer	DIODES
File Size	199.78 KB
Description	NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTC123YKA Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTC123YKA, DDTC113ZKA. Please refer to the document for exact specifications by model.

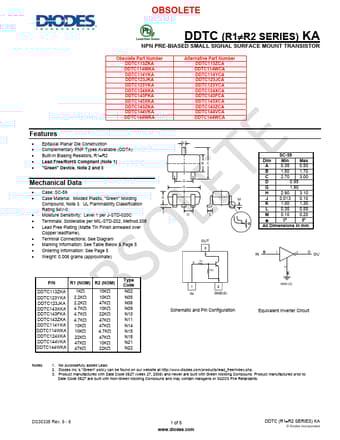

Additional preview pages of the DDTC123YKA datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistors, R1R2.
Lead Free/RoHS Compliant (Note 1).
"Green" Device, Note 2 and 3 Mechanical Data.
Case: SC-59.
Case Material: Molded Plastic, "Green" Molding Compound, Note 3. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Solderable per MIL-STD-202, Method 208.
Lead Free Plating (Matte Tin Finish.
