DDTC115TE - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTC115TE
Manufacturer	DIODES
File Size	422.85 KB
Description	NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTC115TE Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTC115TE, DDTC113TE. Please refer to the document for exact specifications by model.

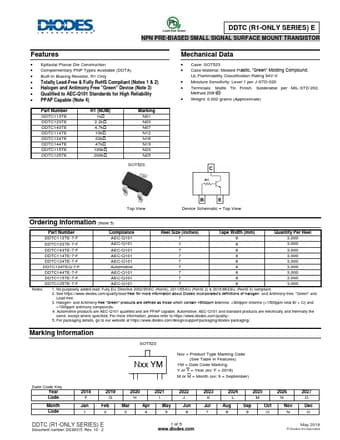

Additional preview pages of the DDTC115TE datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistor, R1 Only.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free "Green" Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Part Number DDTC113TE DDTC123TE DDTC143TE DDTC114TE DDTC124TE DDTC144TE DDTC115TE DDTC125TE R1 (NOM) 1kΩ 2.2kΩ 4.7kΩ 10kΩ 22kΩ 47kΩ 100kΩ 200kΩ Marking N01 N03 N07 N.
