D5V0F4U10MR - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Diodes

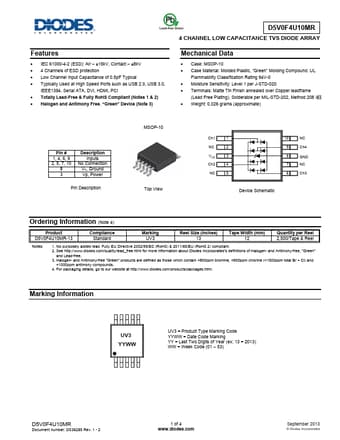

D5V0F4U10MR Datasheet Preview — Preview of D5V0F4U10MR PDF

Datasheet Details

Part number	D5V0F4U10MR
Manufacturer	DIODES ↗
File Size	195.21 KB
Description	4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Datasheet	D5V0F4U10MR-Diodes.pdf

D5V0F4U10MR Product details

Description

Inputs No Connection VN, Ground Vp, Power Pin Description MSOP-10 Top View Ch1 1 NC 2 VDD Ch2 3 4 NC 5 10 NC 9 Ch4 8 GND 7 NC 6 Ch3 Device Schematic Ordering Inform

Features

IEC 61000-4-2 (ESD): Air.
±15kV, Contact.
±8kV.
4 Channels of ESD protection.
Low Channel Input Capacitance of 0.5pF Typical.
Typically Used at High Speed Ports such as USB 2.0, USB 3.0, IEEE1394, Serial ATA, DVI, HDMI, PCI.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) D5V0F4U10MR 4.
