D5V0F1U2LP - 1 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Diodes

📥 Download Datasheet

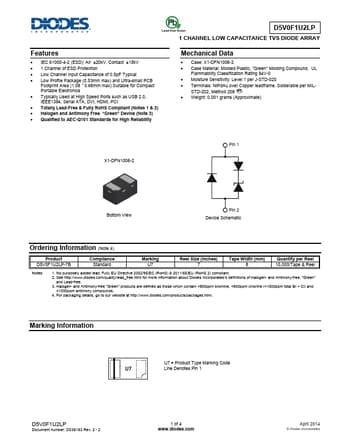

D5V0F1U2LP Datasheet Preview — Preview of D5V0F1U2LP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	D5V0F1U2LP
Manufacturer	DIODES ↗
File Size	242.21 KB
Description	1 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Datasheet	D5V0F1U2LP-Diodes.pdf

D5V0F1U2LP Product details

Features

IEC 61000-4-2 (ESD): Air ±20kV, Contact ±15kV.
1 Channel of ESD Protection.
Low Channel Input Capacitance of 0.5pF Typical.
Low Profile Package (0.53mm max) and Ultra-small PCB Footprint Area (1.08.
0.68mm max) Suitable for Compact Portable Electronics.
Typically Used at High Speed Ports such as USB 2.0, IEEE1394, Serial ATA, DVI, HDMI, PCI.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qu.
