BSS123WQ - N-CHANNEL MOSFET

Diodes

📥 Download Datasheet

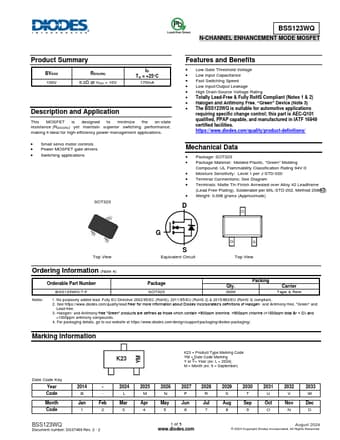

BSS123WQ Datasheet Preview — Preview of BSS123WQ PDF

Datasheet Details

Part number	BSS123WQ
Manufacturer	DIODES
File Size	248.95 KB
Description	N-CHANNEL MOSFET
Datasheet	BSS123WQ-Diodes.pdf

BSS123WQ Product details

Description

and Application This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. Small servo motor controls Power MOSFET gate drivers Switching applications SOT323

Features

Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
High Drain-Source Voltage Rating.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The BSS123WQ is suitable for automotive.
