BC857BLP4 45V PNP SMALL SIGNAL TRANSISTOR

BC857BLP4 Description

BC857BLP4 45V PNP SMALL-SIGNAL TRANSISTOR IN X2-DFN1006-3 .

BC857BLP4 Features

* BVCEO > -45V
* IC = -100mA High Collector Current
* PD = 1W Power Dissipation
* 0.6mm2 Package Footprint, 13 Times Smaller than SOT23
* 0.4mm Height Package Minimizing Off-Board Profile
* Complementary NPN Type: BC847BLP4
* Totally Lead-Free

📥 Download Datasheet

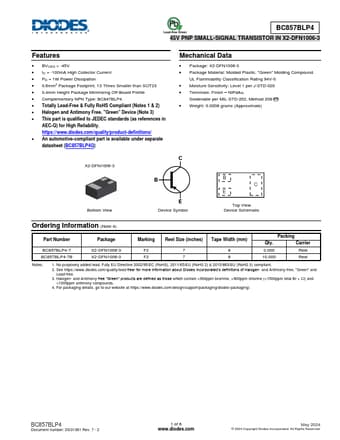

Preview of BC857BLP4 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC857BLP4
Manufacturer
DIODES ↗
File Size
260.19 KB
Datasheet
BC857BLP4-Diodes.pdf
Description
45V PNP SMALL SIGNAL TRANSISTOR
