BC857BFZ 45V PNP SMALL SIGNAL TRANSISTOR

BC857BFZ Description

NEW PRODUCT .

BC857BFZ Features

* BVCEO > -45V
* IC = -100mA High Collector Current
* PD = 925mW Power Dissipation
* 0.36mm2 Package Footprint, 40% Smaller than DFN1006
* 0.4mm Height Package Minimizing Off-Board Profile
* Complementary NPN Type BC847BFZ
* Totally Lead-Free & Fully RoHS Compliant (Notes

BC857BFZ Applications

* shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchase

📥 Download Datasheet

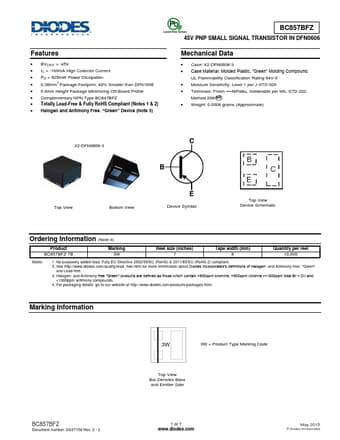

Preview of BC857BFZ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC857BFZ
Manufacturer
DIODES ↗
File Size
437.19 KB
Datasheet
BC857BFZ-Diodes.pdf
Description
45V PNP SMALL SIGNAL TRANSISTOR
