B170BQ - 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

B170BQ Description

Product Summary (@+25°C) B170BQ VRRM (V) 70 IO (A) 1.0 VF max (V) 0.79 B180BQ VRRM (V) 80 IO (A) 1.0 VF max (V) 0.79 B190BQ VRRM (V) 90 IO (A).

B170BQ Features

* Guard Ring Die Construction for Transient Protection
* Ideally Suited for Automated Assembly
* Low Power Loss, High Efficiency
* Surge Overload Rating to 125A Peak

B170BQ Applications

* Polarity Protection Diode
* Re-Circulating Diode
* Blocking Diode
* DC-DC

📥 Download Datasheet

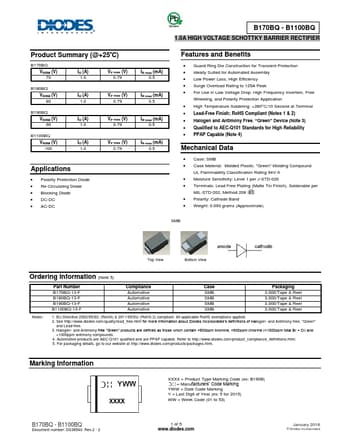

Preview of B170BQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B170BQ
Manufacturer
DIODES ↗
File Size
350.66 KB
Datasheet
B170BQ-Diodes.pdf
Description
1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
