B170 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

B170 Description

B170/B - B1100/B Green 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER Product Summary (@ +25°C) B170/B VRRM (V) 70 IO (A) 1.0 VF Max (V) 0.79 B180/.

B170 Features

* IR Max (mA) 0.5 IR Max (mA) 0.5 IR Max (mA) 0.5 IR Max (mA) 0.5
* Guard Ring Die Construction for Transient Protection
* Ideally Suited for Automated Assembly
* Low Power Loss, High Efficiency
* For Use in Low Voltage Drop, High Frequency Inverters, Free Wheeling, and Polarity Prot

B170 Applications

* Polarity protection diode
* Re-circulating diode
* Blocking diode
* DC-DC

📥 Download Datasheet

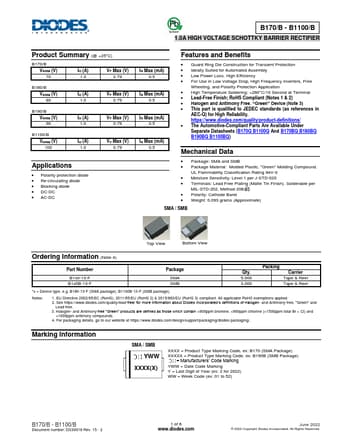

Preview of B170 PDF
datasheet Preview Page 2 datasheet Preview Page 3
