AP65450 - 650kHz ADAPTIVE COT STEP-DOWN CONVERTER

Diodes

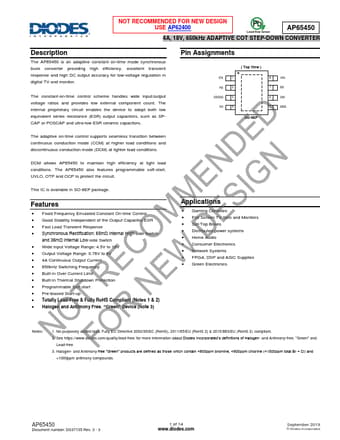

AP65450 Datasheet Preview — Preview of AP65450 PDF

Datasheet Details

Part number	AP65450
Manufacturer	DIODES ↗
File Size	1.23 MB
Description	650kHz ADAPTIVE COT STEP-DOWN CONVERTER
Datasheet	AP65450-Diodes.pdf

AP65450 Product details

Description

The AP65450 is an adaptive constant on-time mode synchronous buck converter providing high efficiency, excellent transient response and high DC output accuracy for low-voltage regulation in digital TV and monitor.

Features

programmable soft-start, UVLO, OTP and OCP to protect the circuit. This IC is available in SO-8EP package. Features.
Fixed Frequency Emulated Constant On-time Control.
Good Stability Independent of the Output Capacitor ESR.
Fast Load Transient Response.
Synchronous Rectification: 65mΩ Internal High-side Switch and 36mΩ Internal Low-side Switch.
Wide Input Voltage Range: 4.5V to 18V.
Output Voltage Range: 0.76V to 6V.
4A Continuous Output Current.
650kHz S.
