AP65454 - 650kHz ADAPTIVE COT STEP-DOWN CONVERTER

General Description

The AP65454 is an adaptive, constant, on-time mode synchronous buck converter providing high efficiency, excellent transient response and high DC output accuracy for low-voltage regulation in digital TVs and monitors.

Key Features

  • programmable soft-start, UVLO, OTP and OCP to protect the circuit. This IC is available in SO-8EP package. Pin Assignments ( Top View ) EN 1 FB 2 VREG5 3 SS 4 8 7 6 5 SO-8EP VIN BS SW GND AP65454 operates in continuous conduction mode (CCM) in light-load conditions for better EMI performance. AP65453 and AP65455 are the options for light-load efficiency enhancement. Features.
  • Fixed Frequency Emulated Constant On-Time Control.
  • Good Stability Independent of the Output Capacitor E.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AP65PN1R4I N-Channel MOSFET Advanced Power Electronics
AP65PN1R4P N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP65SL041AWL N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP65SL099AWL N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP65SL130AI N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics

Other Datasheets by Diodes Incorporated

Part Number Description
AP65450 650kHz ADAPTIVE COT STEP-DOWN CONVERTER
AP65452 650kHz ADAPTIVE COT STEP-DOWN CONVERTER
AP65453 650kHz ADAPTIVE COT STEP-DOWN CONVERTER
AP65455 650kHz ADAPTIVE COT STEP-DOWN CONVERTER
AP65400 LIGHT LOAD IMPROVED 4A SYNCH DC/DC BUCK CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

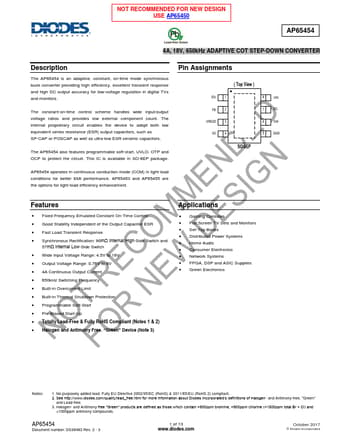

NOT RECOMMENDED FOR NEW DESIGN USE AP65450 AP65454 4A, 18V, 650kHz ADAPTIVE COT STEP-DOWN CONVERTER Description The AP65454 is an adaptive, constant, on-time mode synchronous buck converter providing high efficiency, excellent transient response and high DC output accuracy for low-voltage regulation in digital TVs and monitors. The constant-on-time control scheme handles wide input/output voltage ratios and provides low external component count. The internal proprietary circuit enables the device to adopt both low equivalent series resistance (ESR) output capacitors, such as SP-CAP or POSCAP as well as ultra-low ESR ceramic capacitors. The AP65454 also features programmable soft-start, UVLO, OTP and OCP to protect the circuit. This IC is available in SO-8EP package.
