DTGT30N135 - Field Stop Trench IGBTs

Product Overview

Din-Tek

Datasheet Details

Part number	DTGT30N135
Manufacturer	Din-Tek
File Size	1.56 MB
Description	Field Stop Trench IGBTs
Datasheet	DTGT30N135 Datasheet
Note	This datasheet PDF includes multiple part numbers: DTGT30N135, DTGT30N135-Din. Please refer to the document for exact specifications by model.

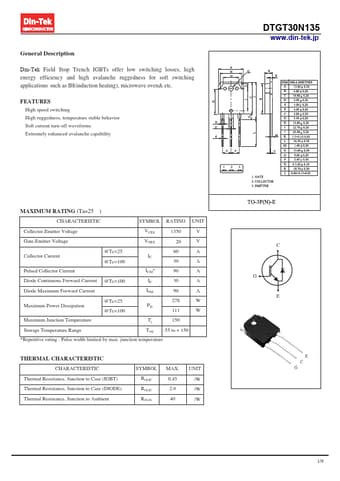

Additional preview pages of the DTGT30N135 datasheet.

Product details

Description

Din-Tek Field Stop Trench IGBTs offer low switching losses, high energy efficiency and high avalanche ruggedness for soft switching applications such as IH(induction heating), microwave oven& etc.

Features

High speed switching High ruggedness, temperature stable behavior Soft current turn-off waveforms Extremely enhanced avalanche capability DTGT30N135 www. din-tek. jp.
