DTGT15N135 - Field Stop Trench IGBTs

Product Overview

Din-Tek

Datasheet Details

Part number	DTGT15N135
Manufacturer	Din-Tek
File Size	1.58 MB
Description	Field Stop Trench IGBTs
Datasheet	DTGT15N135 Datasheet
Note	This datasheet PDF includes multiple part numbers: DTGT15N135, DTGT15N135-Din. Please refer to the document for exact specifications by model.

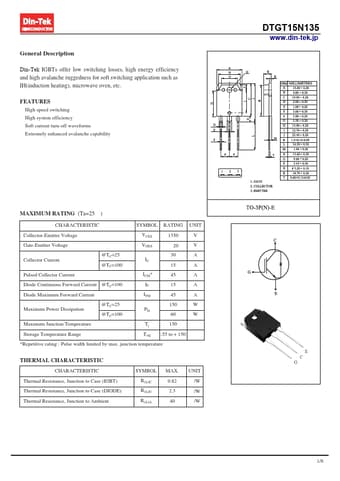

Additional preview pages of the DTGT15N135 datasheet.

Product details

Description

Din-Tek IGBTs offer low switching losses, high energy efficiency and high avalanche ruggedness for soft switching application such as IH(induction heating), microwave oven, etc.

Features

High speed switching High system efficiency Soft current turn-off waveforms Extremely enhanced avalanche capability.
