LCP-1250RJ3SR-S - RoHS Compliant Copper Small Form-factor Pluggable (SFP) Transceiver

Delta Electronics

📥 Download Datasheet

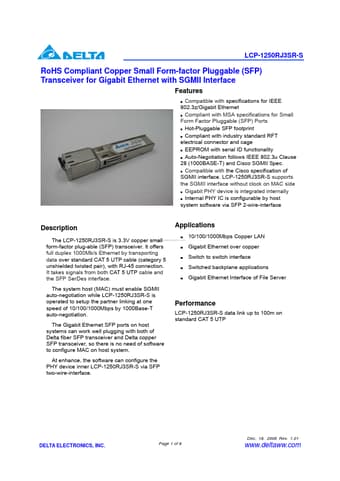

LCP-1250RJ3SR-S Datasheet Preview — Preview of LCP-1250RJ3SR-S PDF

Datasheet Details

Part number	LCP-1250RJ3SR-S
Manufacturer	Delta Electronics
File Size	387.24 KB
Description	RoHS Compliant Copper Small Form-factor Pluggable (SFP) Transceiver
Datasheet	LCP-1250RJ3SR-S_DeltaElectronics.pdf

LCP-1250RJ3SR-S Product details

Description

Applications www.DataSheet4U.com The LCP-1250RJ3SR-S is 3.3V copper small form-factor plug-able (SFP) transceiver. data over standard CAT 5 UTP cable (category 5 unshielded twisted pair), with RJ-45 connection. It takes signals from both CAT 5 UTP cable and the SFP SerDes interface.

Features

Compatible with specifications for IEEE 802.3z/Gigabit Ethernet.
Compliant with MSA specifications for Small Form Factor Pluggable (SFP) Ports.
Hot-Pluggable SFP footprint.
Compliant with industry standard RFT electrical connector and cage.
EEPROM with serial ID functionality.
Auto-Negotiation follows IEEE 802.3u Clause 28 (1000BASE-T) and Cisco SGMII Spec.
Compatible with the Cisco specification of SGMII interface. LCP-1250RJ3SR-S supports.
