LCP-1250B - RoHS Compliant Small Form Factor Pluggable Transceiver

Delta Electronics

The LCP-1250B by Delta Electronics is a RoHS Compliant Small Form Factor Pluggable Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

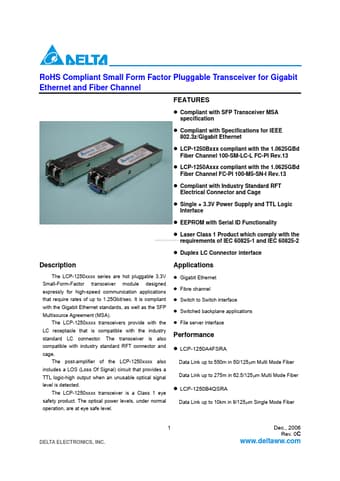

LCP-1250B RoHS Compliant Small Form Factor Pluggable Transceiver by Delta Electronics - Datasheet Preview — Official preview page of the **LCP-1250B** RoHS Compliant Small Form Factor Pluggable Transceiver datasheet (Delta Electronics).

Datasheet Details

Part number	LCP-1250B
Manufacturer	Delta Electronics
File Size	335.58 KB
Description	RoHS Compliant Small Form Factor Pluggable Transceiver
Datasheet	LCP-1250B_DeltaElectronics.pdf
Additional preview pages of the LCP-1250B datasheet.

LCP-1250B Product details

Description

The LCP-1250xxxx series are hot pluggable 3.3V Small-Form-Factor transceiver module designed expressly for high-speed communication applications that require rates of up to 1.25Gbit/sec.

Features

z Compliant with SFP Transceiver MSA specification z Compliant with Specifications for IEEE 802.3z/Gigabit Ethernet z LCP-1250Bxxx compliant with the 1.0625GBd Fiber Channel 100-SM-LC-L FC-PI Rev.13 z LCP-1250Axxx compliant with the 1.0625GBd Fiber Channel FC-PI 100-M5-SN-I Rev.13 z Compliant with Industry Standard RFT Electrical Connector and Cage z Single + 3.3V Power Supply and TTL Logic Interface z EEPROM with Serial ID Functionality www. DataSheet4U. com z Laser Class 1 Product which comply.
