LC-155B SFF LC Duplex Optical Transceiver Module

LC-155B Description

www.DataSheet4U.com LC-155Bxxxx 155Mbps, SFF LC Duplex Optical Transceiver Module for Fast Ethernet, ATM, SONET/SDH STM-1/OC-3 .
The LC-155Bxxxx series from DELTA are SFF （Small Form Factor） optical transceiver modules designed expressly for high-speed communication application.

LC-155B Features

* z Full Compliance with the Optical Performance Requirements of the ATM 100Mbps and 100 Base-FX Version of IEEE 802.3u. Multisource 2x5 package styles with LC Receptacle. Single 5V（LC-155B1 and LC-155B3 Series）or 3.3V（LC-155B2 and LC-155B4 Series）Power Supply. PECL Differential Inputs and Outputs. P

LC-155B Applications

* that require rates of up to 155Mbps. They are all compliant with the SONET/SDH standards. The LC-155Bxxxx transceivers are supplied in 2x5 DIP package style with duplex LC connector and are fully complaint with SFF Multi Source Agreement （MSA）. All LC-155Bxxxx series can meet Class-1 eye safety stan

📥 Download Datasheet

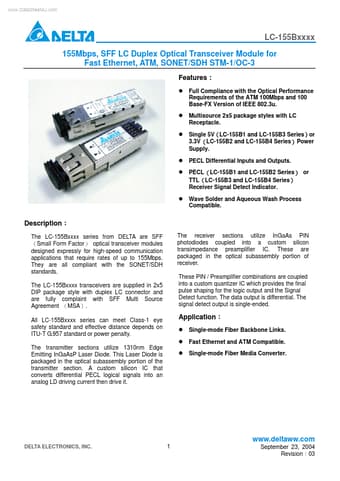

Preview of LC-155B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC-155B
Manufacturer
Delta Electronics
File Size
213.83 KB
Datasheet
LC-155B_DeltaElectronics.pdf
Description
SFF LC Duplex Optical Transceiver Module
