LC-1250xxxxRx RoHS Compliant 2x5 Small Form Factor Transceiver

LC-1250xxxxRx Description

LC-1250xxxxRx Series RoHS Compliant 2x5 Small Form Factor Transceiver for Gigabit Ethernet .
The LC-1250xxxxRx series are high performance, cost effective optical transceivers intended for 1250 Mb/s.

LC-1250xxxxRx Features

* Compliant with SFF transceiver MSA specification Compliant with specifications for IEEE 802.3z/Gigabit Ethernet LC-1250BxQxRx compliant with the 1.0625GBd Fiber Channel 100-SM-LC-L FC-PI Rev.13 LC-1250AxFxRx compliant with the 1.0625GBd Fiber Channel FC-PI 100-M5-SN-I Rev.13 Single + 3.3V power supp

LC-1250xxxxRx Applications

* Switch to switch interface Switched backplane applications File server interface Performance LC-1250AxFxRx: 850nm VCSEL, up to 500m in 50/125 m MMF 850nm VCSEL, up to 220m in 62.5/125 m MMF LC-1250BxQxRx: 1310nm FP laser, up to 10km in 9/125 1310nm FP laser, up to 550m in 50/125 MMF 1310nm FP lase

📥 Download Datasheet

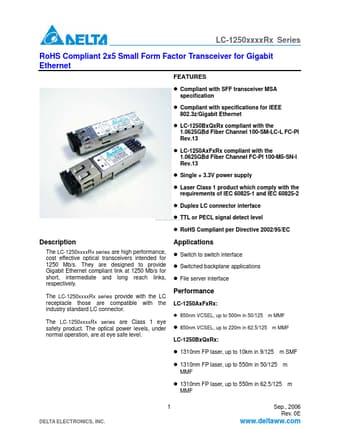

Preview of LC-1250xxxxRx PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC-1250xxxxRx
Manufacturer
Delta Electronics
File Size
121.66 KB
Datasheet
LC-1250xxxxRx_DeltaElectronics.pdf
Description
RoHS Compliant 2x5 Small Form Factor Transceiver
