IPM24S0C0R03FA - Integrated Point-of-Load Power Modules

Delta Electronics

📥 Download Datasheet

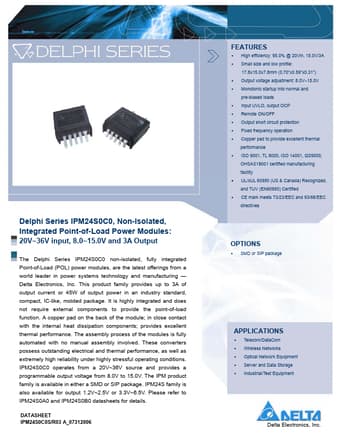

IPM24S0C0R03FA Datasheet Preview — Preview of IPM24S0C0R03FA PDF

Datasheet Details

Part number	IPM24S0C0R03FA
Manufacturer	Delta Electronics
File Size	666.56 KB
Description	Integrated Point-of-Load Power Modules
Datasheet	IPM24S0C0R03FA_DeltaElectronics.pdf

IPM24S0C0R03FA Product details

Description

Over-Current Protection To provide protection in an output over load fault condition, the unit is equipped with internal over-current protection.When the over-current protection is triggered, the unit enters hiccup mode.The units operate normally once the fault condition is removed.Output Voltage Programming The output voltage shall be externally adjustable by use of a Trim pin.The module output shall be adjusted by either a voltage source referenced to ground or an external resistor be co

Features

High efficiency: 95.0% @ 20Vin, 15.0V/3A Small size and low profile: 17.8x15.0x7.8mm (0.70”x0.59”x0.31”) Output voltage adjustment: 8.0V~15.0V Monotonic startup into normal and pre-biased loads Input UVLO, output OCP Remote ON/OFF Output short circuit protection Fixed frequency operation Copper pad to provide excellent thermal performance ISO 9001, TL 9000, ISO 14001, QS9000, OHSAS18001 certified manufacturing facility UL/cUL 60950 (US & Canada) Recognized, and TUV (EN60950) Certified CE mark me.
