DFBM-CH120 - Bluetooth Module Class 2 Wireless communication module compliant

Product Overview

Delta Electronics

Datasheet Details

Part number	DFBM-CH120
Manufacturer	Delta Electronics
File Size	83.86 KB
Description	Bluetooth Module Class 2 Wireless communication module compliant
Datasheet	DFBM-CH120 Datasheet
Additional preview pages of the DFBM-CH120 datasheet.

Product details

Description

External Antenna 50£[ TX, RX, RTS, CTS(9600bps~1.5Mbps) Synchronous Serial Interface for firmware download Full speed Universal Serial Bus interface Qualcomm MSM 3000/5000 , Motorola MC145483/ MC145481 OKI MSM7705 , STW 5093/5094 8 terminals 2 terminals Pin description Pin No.1 2 3 4 Data Sheet Name Reset AIO_1 AIO_0 ANT Description An active high reset Analogue Programmable input/output Analogue Programmable input/output RF input/output Jan 24, 2005 Proprietary Information and Specificatio

Features

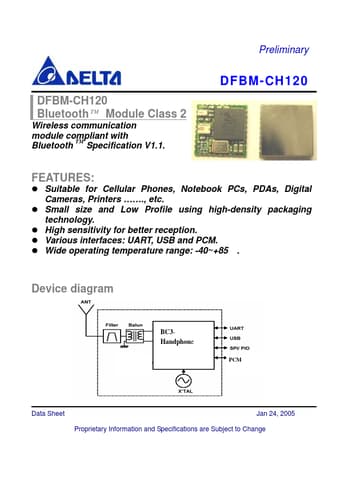

z Suitable for Cellular Phones, Notebook PCs, PDAs, Digital Cameras, Printers ……. , etc. z Small size and Low Profile using high-density packaging technology. z High sensitivity for better reception. z Various interfaces: UART, USB and PCM. z Wide operating temperature range: -40~+85¢J . Device diagram BC3Handphone PCM Data Sheet Jan 24, 2005 Proprietary Information and Specifications are Subject to Change Preliminary DFBM-CH120 General Specification Bluetooth Specification Frequency Modul.
