DFBM-CF121 - Wireless communication module compliant

Product Overview

Delta Electronics

Datasheet Details

Part number	DFBM-CF121
Manufacturer	Delta Electronics
File Size	243.00 KB
Description	Wireless communication module compliant
Datasheet	DFBM-CF121 Datasheet

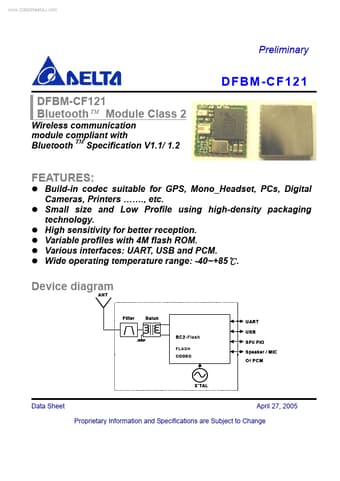

Additional preview pages of the DFBM-CF121 datasheet.

Product details

Description

External Antenna 50Ω TX, RX, RTS, CTS(9600bps~1.5Mbps) Synchronous Serial Interface for firmware download Full speed Universal Serial Bus interface Qualcomm MSM 3000/5000 , Motorola MC145483/ MC145481 OKI MSM7705 , STW 5093/5094 8 terminals 2 terminals Rating Min Storage Temperature VDD_1.8V VDD_3.15V -40 -0.4 -0.4 Max +85 +1.9 +3.6 Unit ℃ V V Recommend Min VDD_1.8V VDD_3.15V +1.7 +2.7 Max +1.9 +3.6 Unit V V Data Sheet April 27, 2005 Proprietary Information and Specifications are Subject to

Features

Build-in codec suitable for GPS, Mono_Headset, PCs, Digital Cameras, Printers ……. , etc. Small size and Low Profile using high-density packaging technology. High sensitivity for better reception. Variable profiles with 4M flash ROM. Various interfaces: UART, USB and PCM. Wide operating temperature range: -40~+85℃. Device diagram ANT Filter Balun UART USB BC2 -Flash SPI/ PIO FLASH CODEC Speaker / M IC Or PCM X ’TAL Data Sheet April 27, 2005 Proprietary Information and Specifications are Subj.
