ADC-318A - 120MHz and 140MHz Full-Flash A/D Converter

This page provides the datasheet information for the ADC-318A, a member of the ADC-318 120MHz and 140MHz Full-Flash A/D Converter family.

Description

REF.

REF.

full flash A/D converters.

Features

  • Low power dissipation (960mW max. ).

📥 Download Datasheet

Datasheet preview – ADC-318A

Datasheet Details

Part number ADC-318A
Manufacturer Datel
File Size 324.87 KB
Description 120MHz and 140MHz Full-Flash A/D Converter
Datasheet download datasheet ADC-318A Datasheet
Additional preview pages of the ADC-318A datasheet.

📁 Similar Datasheet

  • ADC-0802 - A/D Converters (Harris)
  • ADC-0803 - A/D Converters (Harris)
  • ADC-0804 - A/D Converters (Intersil Corporation)
  • ADC-0804 - A/D Converters (Harris)
  • ADC-10-4+ - Directional Coupler (Mini-Circuits)
  • ADC-20-132+ - Directional Coupler (Mini-Circuits)
  • ADC0508G - CMOS 8-bit 5 Channel A/D converters (ETC)
  • ADC07D1520 - Dual 1.5 GSPS or Single 3.0 GSPS A/D Converter (Texas Instruments)
  • ADC0800 - ADC0800 8-Bit A/D Converter (National Semiconductor)
  • ADC0801 - 8-Bit uP Compatible A/D Converters (National Semiconductor)
Other Datasheets by Datel
  • ADC-318 - 120MHz and 140MHz Full-Flash A/D Converter
  • ADC-301 - 8-Bit Video Flash A/D Converters
  • ADC-302 - 8-Bit Video Flash A/D Converters
  • ADC-304 - Low-Power Flash A/D Converters
  • ADC-305 - 20MHz CMOS A/D Converters
  • ADC-306 - Low-Power Flash A/D Converter
  • ADC-309 - Flash A/D Converters
  • ADC-321 - 50MHz Video A/D Converter

Full PDF Text Transcription

Click to expand full text

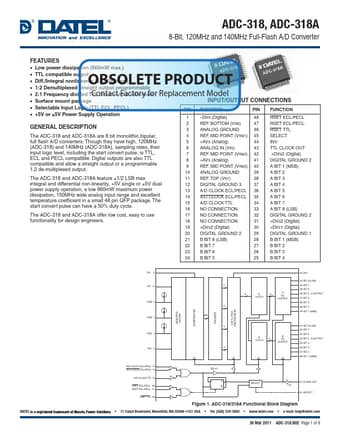

® ® ADC-318, ADC-318A 8-Bit, 120MHz and 140MHz Full-Flash A/D Converter FEATURES • Low power dissipation (960mW max.) OBSOLETE PRODUCT • TTL compatible output • Diff./Integral nonlinearity (±½LSB max.) • 1:2 Demultiplexed straight output programmable • 2:1 Frequency divided TCTLocnlotcakcotutFpautcwtiothrryesfeot r Replacement Model • Surface mount package INPUT/OUTPUT CONNECTIONS • Selectable Input Logic (TTl, ECL, PECL) • +5V or ±5V Power Supply Operation PIN FUNCTION 1 –DVs (Digital) PIN FUNCTION 48 RSET ECL/PECL GENERAL DESCRIPTION 2 REF. BOTTOM (VRB) 3 ANALOG GROUND 47 RSET ECL/PECL 46 RSET TTL The ADC-318 and ADC-318A are 8 bit monolithic bipolar, 4 REF. MID POINT (VRM1) 45 SELECT full flash A/D converters.
