PPG38F - 8-BIT PROGRAMMABLE PULSE GENERATOR

Data Delay Devices

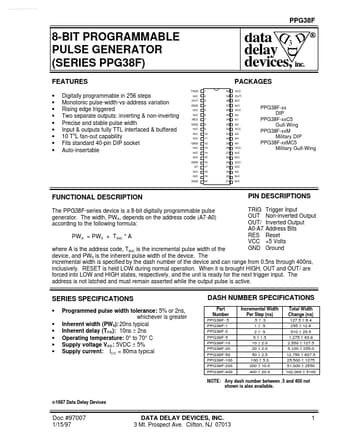

The PPG38F by Data Delay Devices is a 8-BIT PROGRAMMABLE PULSE GENERATOR. Below is the official datasheet preview.

📥 Download Datasheet

PPG38F 8-BIT PROGRAMMABLE PULSE GENERATOR by Data Delay Devices - Datasheet Preview — Official preview page of the **PPG38F** 8-BIT PROGRAMMABLE PULSE GENERATOR datasheet (Data Delay Devices).

Datasheet Details

Part number	PPG38F
Manufacturer	Data Delay Devices
File Size	65.36 KB
Description	8-BIT PROGRAMMABLE PULSE GENERATOR
Datasheet	PPG38F_DataDelayDevices.pdf
Additional preview pages of the PPG38F datasheet.

PPG38F Product details

Description

The PPG38F-series device is a 8-bit digitally programmable pulse generator. A PIN DESCRIPTIONS TRIG OUT OUT/ A0-A7 RES VCC GND Trigger Input Non-inverted Output Inverted Output Address Bits Reset +5 Volts Ground where A is the address code, TINC is the incremental pulse width of the device, and PW0 is the inherent pulse width of the device.The incremental width is specified by the da

Features

TRIG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 VCC OUT/ N/C N/C VCC A0 A1 A2 VCC A3 A4 A5 VCC N/C N/C VCC N/C A6 N/C N/C data 3 ® delay devices, inc.
