PPG36F - 6-BIT PROGRAMMABLE PULSE GENERATOR

Data Delay Devices

The PPG36F by Data Delay Devices is a 6-BIT PROGRAMMABLE PULSE GENERATOR. Below is the official datasheet preview.

📥 Download Datasheet

PPG36F 6-BIT PROGRAMMABLE PULSE GENERATOR by Data Delay Devices - Datasheet Preview — Official preview page of the **PPG36F** 6-BIT PROGRAMMABLE PULSE GENERATOR datasheet (Data Delay Devices).

Datasheet Details

Part number	PPG36F
Manufacturer	Data Delay Devices
File Size	62.76 KB
Description	6-BIT PROGRAMMABLE PULSE GENERATOR
Datasheet	PPG36F_DataDelayDevices.pdf
Additional preview pages of the PPG36F datasheet.

PPG36F Product details

Description

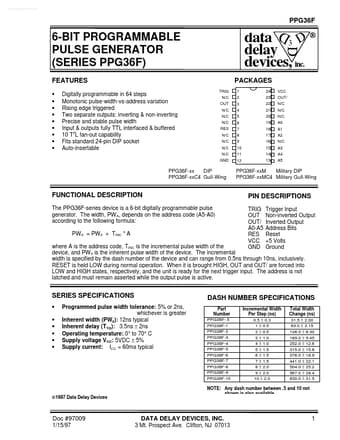

The PPG36F-series device is a 6-bit digitally programmable pulse generator. A PIN DESCRIPTIONS TRIG OUT OUT/ A0-A5 RES VCC GND Trigger Input Non-inverted Output Inverted Output Address Bits Reset +5 Volts Ground where A is the address code, TINC is the incremental pulse width of the device, and PW 0 is the inherent pulse width of the device.The incremental width is specified by the

Features

Digitally programmable in 64 steps Monotonic pulse-width-vs-address variation Rising edge triggered Two separate outputs: inverting & non-inverting Precise and stable pulse width Input & outputs fully TTL interfaced & buffered 2 10 T L fan-out capability Fits standard 24-pin DIP socket Auto-insertable TRIG N/C OUT N/C N/C N/C RES N/C N/C N/C N/C GND 1 2 3 4 5 6 7 8 9 10 11 12 data 3 ® delay devices, inc. P.
