The PDU1064H by Data Delay Devices is a ECL-INTERFACED PROGRAMMABLE DELAY LIN. Below is the official datasheet preview.
| Part number | PDU1064H |
|---|---|
| Manufacturer | Data Delay Devices |
| File Size | 65.70 KB |
| Description | ECL-INTERFACED PROGRAMMABLE DELAY LIN |
| Datasheet |
 PDU1064H_DataDelayDevices.pdf
|
|
|

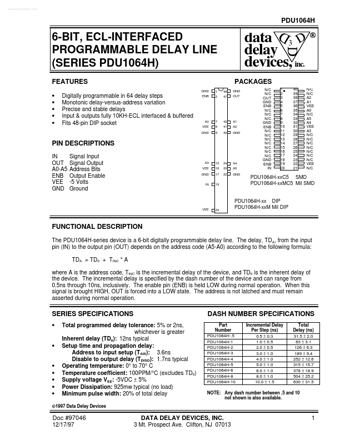

IN OUT A0-A5 ENB VEE GND Signal Input Signal Output Address Bits Output Enable -5 Volts Ground A3 VEE GND IN 15 16 17 19 34 33 32 A4 A5 GND PDU1064H-xxC5 SMD PDU1064H-xxMC5 Mil SMD VEE 24 PDU1064H-xx DIP PDU1064H-xxM Mil DIP FUNCTIONAL DESCRIPTION The PDU1064H-series device is a 6-bit digitally programmable delay line.The delay, TDA, from the input pin (IN) to the output pin (OUT) depends on the address code (A5-A0) according to the following formula: TDA = TD0 + TINC A where A is t
