PDU-G102B - UV Enhanced GaN Detectors

Description

The PDU-G102B is a GaN UV photodiode with a spectral range from 200nm to 320nm and is ideal for UVB sensing applications available in a TO-46 can package.

UVB power meters Sun dosimeters UV epoxy curing UV instrumentation ABSOLUTE MAXIMUM

Features

  • 320nm UVB response Visible & NIR blind Photovoltaic operation High shunt resistance.

📥 Download Datasheet

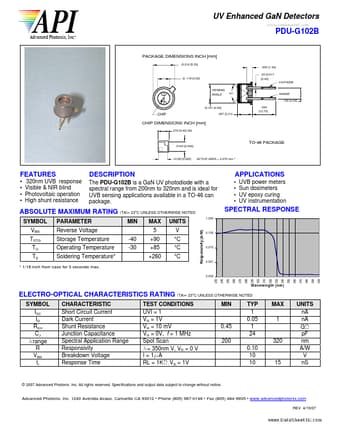

Datasheet preview – PDU-G102B

Datasheet Details

Part number PDU-G102B
Manufacturer Advanced Photonix
File Size 73.42 KB
Description UV Enhanced GaN Detectors
Datasheet download datasheet PDU-G102B Datasheet
Additional preview pages of the PDU-G102B datasheet.

📁 Similar Datasheet

  • PDU-1316 - Digitally Programmable Delay Units (Data Delay Devices)
  • PDU1016H - ECL-INTERFACED PROGRAMMABLE DELAY LINE (Data Delay Devices)
  • PDU10256H - ECL-INTERFACED PROGRAMMABLE DELAY LINE (Data Delay Devices)
  • PDU1032H - ECL-INTERFACED PROGRAMMABLE DELAY LINE (Data Delay Devices)
  • PDU1064H - ECL-INTERFACED PROGRAMMABLE DELAY LIN (Data Delay Devices)
  • PDU108H - ECL-INTERFACED PROGRAMMABLE DELAY LINE (Data Delay Devices)
  • PDU138 - 3-BIT PROGRAMMABLE DELAY LINE (Data Delay Devices)
  • PDU13F - 3-BIT PROGRAMMABLE DELAY LINE (Data Delay Devices)
  • PDU14F - 4-BIT PROGRAMMABLE DELAY LINE (Data Delay Devices)
  • PDU15F - 5-BIT PROGRAMMABLE DELAY LINE (Data Delay Devices)
Other Datasheets by Advanced Photonix

Full PDF Text Transcription

Click to expand full text
UV Enhanced GaN Detectors www.DataSheet4U.com Advanced Photonix, Inc. PDU-G102B PACKAGE DIMENSIONS INCH [mm] Ø.210 [5.35] .055 [1.40] 2X Ø.017 [0.43] CATHODE VIEWING ANGLE Ø .118 [3.00] 61° ANODE .100 [2.54] Ø.181 [4.60] CHIP .087 [2.21] .500 [12.70] CHIP DIMENSIONS INCH [mm] .016 [0.40] SQ .0134 [0.340] TO-46 PACKAGE .0126 [0.320] ACTIVE AREA = 0.076 mm ² FEATURES • • • • 320nm UVB response Visible & NIR blind Photovoltaic operation High shunt resistance DESCRIPTION The PDU-G102B is a GaN UV photodiode with a spectral range from 200nm to 320nm and is ideal for UVB sensing applications available in a TO-46 can package. 1.
