DS1640C, DS1640 - Personal Computer Power FET

Dallas Semiconducotr

📥 Download Datasheet

DS1640C Datasheet Preview — This datasheet PDF includes multiple part numbers: DS1640C, DS1640. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DS1640C, DS1640
Manufacturer	Dallas Semiconducotr
File Size	84.55 KB
Description	Personal Computer Power FET
Datasheet	DS1640_DallasSemiconducotr.pdf
Note	This datasheet PDF includes multiple part numbers: DS1640C, DS1640. Please refer to the document for exact specifications by model.

DS1640C Product details

Description

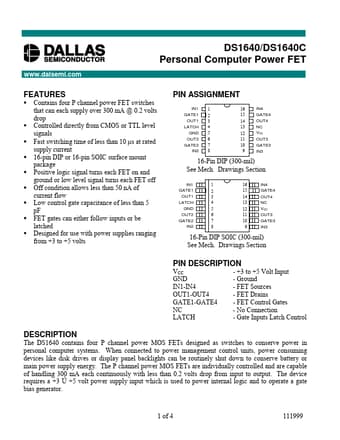

VCC GND IN1-IN4 OUT1-OUT4 GATE1-GATE4 NC LATCH - +3 to +5 Volt Input - Ground - FET Sources - FET Drains - FET Control Gates - No Connection - Gate Inputs Latch Control DESCRIPTION The DS1640 contains four P channel power MOS FETs designed as switches to conserve power in personal computer systems.When connected to power management control units, power consuming devices like disk drives or display panel backlights can be routinely shut down to conserve battery or main power supply energy.The

Features

Contains four P channel power FET switches that can each supply over 300 mA @ 0.2 volts drop Controlled directly from CMOS or TTL level signals Fast switching time of less than 10 µs at rated supply current 16-pin DIP or 16-pin SOIC surface mount package Positive logic signal turns each FET on and ground or low level signal turns each FET off Off condition allows less than 50 nA of current flow Low control gate capacitance of less than 5 pF FET gates can either follow inputs or be latched Design.
