DS1615 - Temperature Recorder

Dallas Semiconducotr

📥 Download Datasheet

DS1615 Datasheet Preview — Preview of DS1615 PDF

Datasheet Details

Part number	DS1615
Manufacturer	Dallas Semiconducotr
File Size	225.97 KB
Description	Temperature Recorder
Datasheet	DS1615_DallasSemiconducotr.pdf

DS1615 Product details

Description

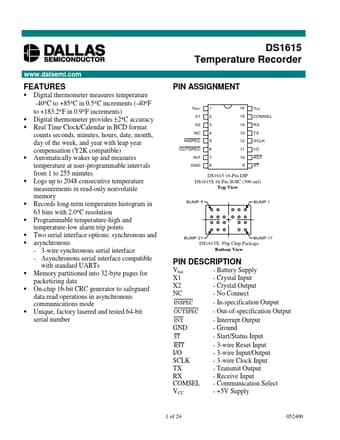

Vbat X1 X2 NC INSPEC OUTSPEC INT GND ST RST I/O SCLK TX RX COMSEL VCC - Battery Supply - Crystal Input - Crystal Output - No Connect - In-specification Output - Out-of-specification Output - Interrupt Output - Ground - Start/Status Input - 3-wire Reset Input - 3-wire Input/Output - 3-wire Clock Input - Transmit Output - Receive Input - Communication Select - +5V Supply 1 of 24 052400 DS1615 ORDERING INFORMATION DS1615 16-Pin DIP DS1615S 16-Pin SOIC DS1615X Flip Chip Package DS1615S 16 -Pi

Features

Digital thermometer measures temperature -40°C to +85°C in 0.5°C increments (-40°F to +183.2°F in 0.9°F increments) Digital thermometer provides ±2°C accuracy Real Time Clock/Calendar in BCD format counts seconds, minutes, hours, date, month, day of the week, and year with leap year compensation (Y2K compatible) Automatically wakes up and measures temperature at user-programmable intervals from 1 to 255 minutes Logs up to 2048 consecutive temperature measurements in read-only nonvolatile memory.
