DIO2128 - 3-Vrms Audio Driver

Product Overview

Datasheet Details

Part number	DIO2128
Manufacturer	DIOO MICROCIRCUITS
File Size	678.86 KB
Description	3-Vrms Audio Driver
Datasheet	DIO2128 Datasheet

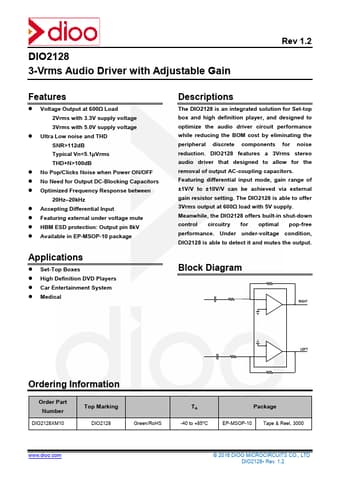

Additional preview pages of the DIO2128 datasheet.

Product details

Description

The DIO2128 is an integrated solution for Set-top box and high definition player, and designed to optimize the audio driver circuit performance while reducing the BOM cost by eliminating the peripheral discrete components for noise reduction.

Features

Voltage Output at 600Ω Load 2Vrms with 3.3V supply voltage 3Vrms with 5.0V supply voltage Ultra Low noise and THD SNR>112dB Typical Vn100dB No Pop/Clicks Noise when Power ON/OFF No Need for Output DC-Blocking Capacitors Optimized Frequency Response between 20Hz.
20kHz Accepting Differential Input Featuring external under voltage mute HBM ESD protection: Output pin 8kV Available in EP-MSOP-10 package.
