DIO20722 - RRIO 10MHz Amplifier

Product Overview

📥 Download Datasheet

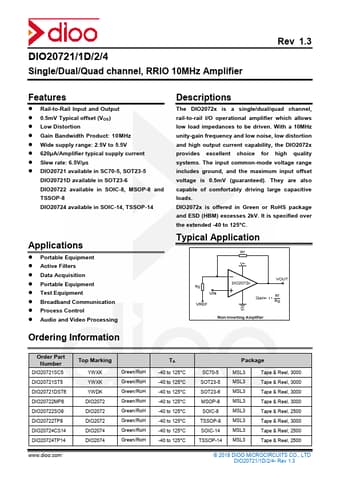

DIO20722 RRIO 10MHz Amplifier by DIOO MICROCIRCUITS - Datasheet Preview — Datasheet preview – DIO20722

Datasheet Details

Part number	DIO20722
Manufacturer	DIOO MICROCIRCUITS
File Size	517.12 KB
Description	RRIO 10MHz Amplifier
Datasheet	DIO20722 Datasheet
Note	This datasheet PDF includes multiple part numbers: DIO20722, DIO20721. Please refer to the document for exact specifications by model.
Additional preview pages of the DIO20722 datasheet.

Product details

Description

The DIO2072x is a single/dual/quad channel, rail-to-rail I/O operational amplifier which allows low load impedances to be driven.

Features

Rail-to-Rail Input and Output.
0.5mV Typical offset (VOS).
Low Distortion.
Gain Bandwidth Product: 10MHz.
Wide supply range: 2.5V to 5.5V.
620μA/Amplifier typical supply current.
Slew rate: 6.5V/µs.
DIO20721 available in SC70-5, SOT23-5 DIO20721D available in SOT23-6 DIO20722 available in SOIC-8, MSOP-8 and TSSOP-8 DIO20724 available in SOIC-14, TSSOP-14.
