SB5150 SCHOTTKY BARRIER RECTIFIER

SB5150 Description

SCHOTTKY BARRIER RECTIFIER Green SB5150(LS) REVERSE VOLTAGE * 150 Volts FORWARD CURRENT * 5.0 Amperes .

SB5150 Features

* Metal-Semiconductor junction with guard ring
* Epitaxial construction
* Low forward voltage drop
* High current capability
* The plastic material carries UL recognition 94-0
* For use in low voltage ,high frequency inverters, free wheeling, and polar

SB5150 Applications

* however, in all instances customers and users are responsible for (a) selecting the appropriate Diodes products for their applications, (b) evaluating the suitability of Diodes’ products for their intended applications, (c) ensuring their applications, which incorporate Diodes’ products, comply t

📥 Download Datasheet

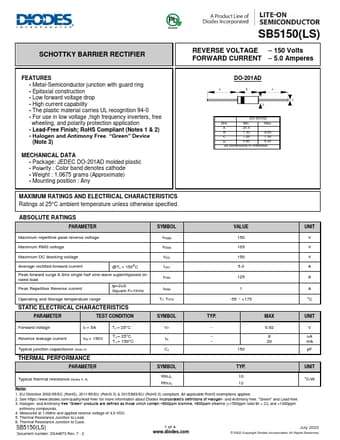

Preview of SB5150 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB5150
Manufacturer
DIODES ↗
File Size
439.92 KB
Datasheet
SB5150-DIODES.pdf
Description
SCHOTTKY BARRIER RECTIFIER
