SB5100, SB570 5.0A SCHOTTKY BARRIER RECTIFIER

SB5100 Description

Pb SB570 - SB5100 5.0A SCHOTTKY BARRIER RECTIFIER .

SB5100 Features

* Guard Ring Die Construction for Transient Protection
* Low Power Loss, High Efficiency
* High Surge Capability
* High Current Capability
* Surge Overload Rating to 150A Peak
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applicati

SB5100 Applications

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* For automotive applications requiring specific change control (i. e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www. d

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB5100, SB570. Please refer to the document for exact specifications by model.

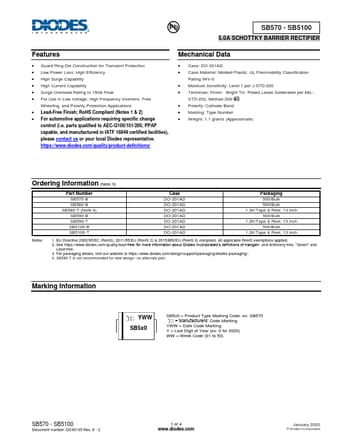

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB5100, SB570
Manufacturer
DIODES ↗
File Size
365.28 KB
Datasheet
SB570-DIODES.pdf
Description
5.0A SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB5100, SB570.
Please refer to the document for exact specifications by model.
