PR3001 - 3.0A FAST RECOVERY RECTIFIER

DIODES

📥 Download Datasheet

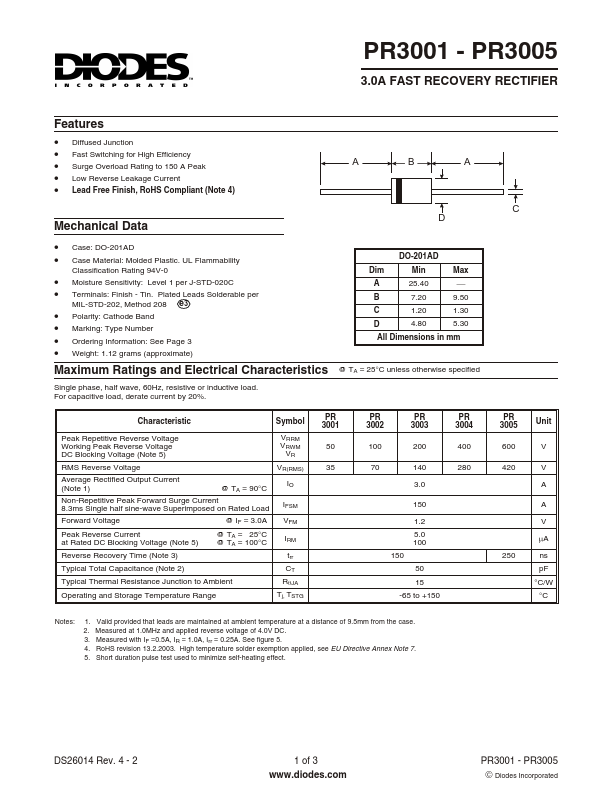

PR3001 Datasheet Preview — Preview of PR3001 PDF

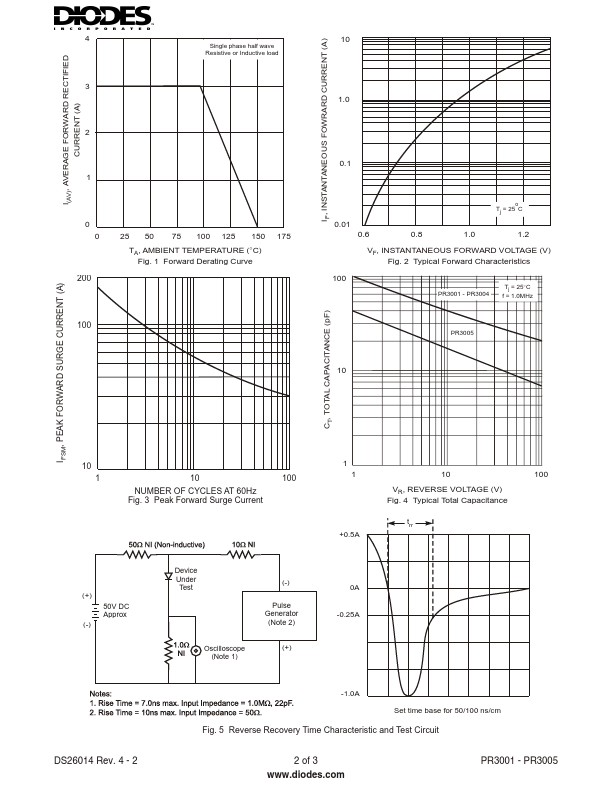

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PR3001
Manufacturer	DIODES ↗
File Size	360.57 KB
Description	3.0A FAST RECOVERY RECTIFIER
Datasheet	PR3001-DIODES.pdf

PR3001 Product details

Features

Diffused Junction.
Fast Switching for High Efficiency.
Surge Overload Rating to 150 A Peak.
Low Reverse Leakage Current.
Lead Free Finish, RoHS Compliant (Note 4) A B A Mechanical Data D.
Case: DO-201AD.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Finish - Tin. Plated Leads Solderable per MIL-STD-202, Method 208 e3.
Polarity: Cathode Band.
Marking.
