PI3C3861-A 10-Bit Bus Switch

PI3C3861-A Description

A product Line of Diodes Incorporated PI3C3861 *A 2.5V/3.3V, High Bandwidth, Hot-Insertion, 10-Bit, 2-Port, Bus Switch .
PI3C series of logic circuits are produced using the company's advance submicron CMOS technology, achieving industry leading performance.

PI3C3861-A Features

* ¼¼ Near-Zero propagation delay ¼¼ 5-ohm switches connect inputs to outputs ¼¼ High bandwidth (>400 MHz) ¼¼ Rail-to-rail 2.5V or 3.3V switching ¼¼ 5V I/O Tolerant ¼¼ 2.5V Supply Voltage Operation ¼¼ Permits Hot-Insertion ¼¼ Packaging (Pb-free & Green):
* 24-pin 150-mil wide plastic QSOP (Q) A

📥 Download Datasheet

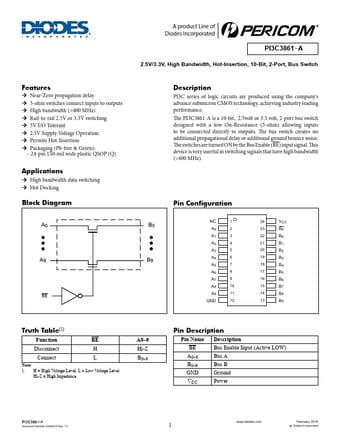

Preview of PI3C3861-A PDF
datasheet Preview Page 2 datasheet Preview Page 3
